Current Transformers

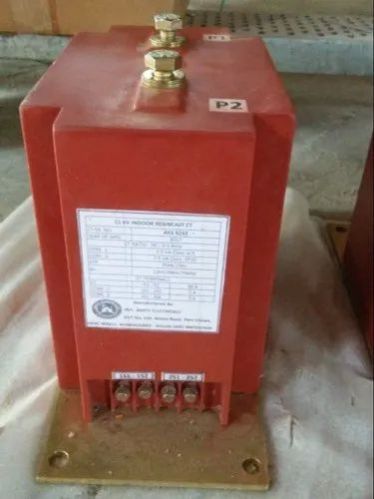

A resin-cast current transformer is a specialized type of instrument transformer used in power systems for accurate measurement and monitoring of electrical currents. Unlike traditional current transformers that may use oil or gas insulation, resin-cast transformers employ solid epoxy resin for insulation and encapsulation. This design offers several advantages, including enhanced safety, compact size, and improved environmental resistance. Check this with the Resin Cast Current Transformer Suppliers for more details.

The core of a resin-cast current transformer is made of high-permeability magnetic material, ensuring accurate and reliable current measurement. The winding around the core carries the primary current, and the secondary winding provides a reduced, proportionate current for measurement by instruments and relays. The entire assembly is then encapsulated in epoxy resin under vacuum conditions, forming a solid and durable unit.

One notable benefit of resin casting is its ability to provide excellent insulation properties. The epoxy resin not only protects the transformer from environmental factors like moisture and pollutants but also enhances its dielectric strength. This makes resin-cast current transformers particularly suitable for indoor and outdoor installations, even in challenging environmental conditions.

The compact and lightweight nature of resin-cast transformers allows for easier handling and installation. Additionally, their design often includes features for ease of mounting and connection within electrical systems. Your Resin Cast Current Transformer Suppliers will mention you about this.

Resin-cast current transformers are commonly used in various applications, including metering, protection, and control in power distribution systems. Their accuracy and reliability make them crucial components for precise current measurement, ensuring the effective and safe operation of electrical networks.
